model year Front Rear
50 CR RE/RF 84-85 DS050 DS050
50 CRE Six 07-08 DB2630 DB2280
50 CRF F 04-24 DS016 DS016
50 CRM 93-96 DB2350 DS030
50 CRM Derepage 07-08 DB2630 DB2280

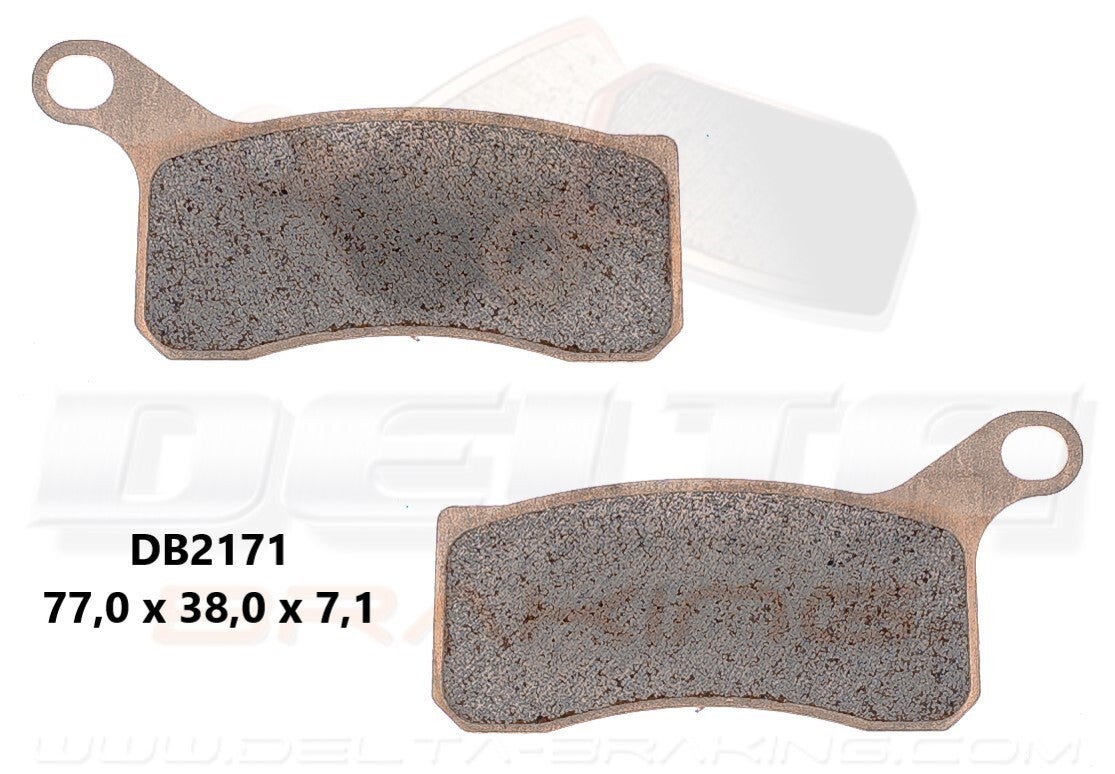

50 CRM Derepage 09 DB2171 DB2280
50/100 XR M5 Motard 05 DB2340 DB2170
60 CR R 85-86 DS050 DS050
75 CRM R 89-94 DB2350 DS030
80 CR R 86-91 DB2070 DS055
80 CR R 92-02 DB2070 DB2170
80 CR R2F/R2G 85-86 DS030 DS030
80 CR RA/RB 80-81 DS030 DS030
80 CR RC 82 DS030 DS050
80 CR RD/RE 83-84 DS050 DS050
80 CR RF 85 DS050 DS055
80 MTX R 83-84 DS030 DS030
85 CR R3-7/RB3-7 03-07 DB2070 DB2170
100 XR Motard 08 DB2340 DB2016
125 CR M2/M3/M4 76-78 DS030 DS030
125 CR MOTARD 04-06 DB2230 DB2280
125 CR R2-7 02-07 DB2230 DB2280
125 CR RA/RB/RZ 79-81 DS039 DS045
125 CR RC 82 DS045 DS045
125 CR RD 83 DS046 DS046
125 CR RE/RF 84-85 DB2080 DS046
125 CR RG 86 DB2080 DS060
125 CR RH/RJ/RK/RL/RM/RN/RP/RR 87-94 DB2350 DB2170
125 CR RS/RT/RV/RW/RX/RY/R1 95-01 DB2230 DB2170
125 CRE 11-12 DB2230 DB2280
125 CRE Baja RR 11-12 DB2177 DB2280
125 CRE HM 02-08 DB2230 DB2280
125 CRE R Enduro 02-07 DB2230 DB2280
125 CRE R Supermotard 02-06 DB2230 DB2280
125 CRE/CRM F X 09 DB2630 DB2280
125 CRF F Small Wheel/ Big Wheel 14-24 DB2230 DS050
125 CRM 11-12 DB2171 DB2280
125 CRM R 90-99 DB2710 DB2010
125 CRM R Supermoto 07-08 DB2870 DB2280
125 MTX R 85-95 DB2080 DS030
125 XL R 86- DB2080 DS023
125 XLR RW 98-01 DB2230 DS030
125 XR L3-7 03-08 DB2230 DS030
125 XR SM 04 DB2230 DB2120
150 CRF F3-F9 03-20 DB2230 DS030
150 CRF R(Small Wheel) 07-24 DB2800 DB2280
150 CRF RB(Big Wheel) 07-24 DB2800 DB2280
200 CTX 04-16 DB2230 DS030
230 CRF 04-07 DB2230 DB2280
230 CRF F4-F9 04-20 DB2230 DS030
230 CRF L 08-15 DB2230 DB2016
230 SL 97-01 DB2230 DB2170
250 AX-1 89-94 DB2350 DB2510
250 CR R2-7 02-07 DB2230 DB2280
250 CR RA/RZ 79-80 DS039 DS040
250 CR RB 81 DS042 DS045
250 CR RC 82 DS043 DS045
250 CR RD 83 DS043 DS046
250 CR RE/RF 84-85 DB2080 DS046
250 CR RG 86 DB2080 DS060
250 CR RH/RJ/RK/RL/RM/RN/RP/RR 87-94 DB2350 DB2170
250 CR RS/RT/RV/RW/RX/RY/R1 95-01 DB2230 DB2170
250 CRE 02-12 DB2230 DB2280
250 CRF F 13-24 DB2230 DB2280
250 CRF L/M HONDA THAILAND 12-23 DB2177 DB2227
250 CRF R/X/RX 04-24 DB2230 DB2280
250 CRF RALLY 13-23 DB2177 DB2227
250 CRF XRL 14-20 DB2230 DB2280
250 CRM 89-90 DB2350 DB2510
250 CRM 94-96 DB2230 DB2170
250 CRM ARW/ARV 97-98 DB2230 DB2170
250 CRM R 91-93 DB2350 DB2170
250 CRM X Supermoto 07-08 DB2870 DB2280
250 FTR 86- DB2080 DB2080
250 NX 87-93 DB2350 N/A
250 TRX 86-89 DB2350 DB2080
250 XL 90 DB2350 DB2170
250 XL Degree 91- DB2350 N/A
250 XLR Baja MK2 DB2230 DB2510
250 XLR R 88-90 DB2080 DB2510
250 XLR R 91- DB2230 DB2170
250 XR 84-87 DB2080 N/A
250 XR Motard 03-05 DB2230 DB2170
250 XR R 88-89 DB2350 DS030
250 XR R 90-95 DB2350 DB2170
250 XR R 96-05 DB2230 DB2170
250 XR Y/3 Baja 00-03 DB2230 DB2170
250-1 CRM (MD24) 88-90 DB2350 DB2510
250/400/440 XR 04 DB2230 DB2280
250/600 XR R 04 DB2230 DB2170
290 CRE 07 DB2230 DB2280
300 CRE F X 08-09 DB2230 DB2280
300 CRF L/LS 20-23 DB2177 DB2227
300 CRF RALLY 20-23 DB2177 DB2227
400 XR Motard 07-08 DB2038 DB2170
400 XR R 96-05 DB2230 DB2170
400 XR R5-6 Motard 05-06 DB2230 DB2170
450 CR RB 81 DS042 DS045
450 CRE HM 02-08 DB2230 DB2280
450 CRF L 18 18-22 DB2230 DB2280
450 CRF R 02-24 DB2230 DB2280
450 CRF R-S 22-24 DB2230 DB2280
450 CRF RL 18 20-24 DB2230 DB2280
450 CRF RWE/RWX 19-24 DB2230 DB2280
450 CRF X/RX 05-24 DB2230 DB2280
450 CRM R/X Supermoto 07-09 DB2870 DB2280
480 CR RC 82 DS043 DS045
480 CR RD 83 DS043 DS046
490 CRM F Supermoto 07-08 DB2870 DB2280
500 CR RE/RF 84-85 DB2080 DS046
500 CR RG 86 DB2080 DS060
500 CR RH/RJ/RK/RL/RM/RN/RP/RR 87-94 DB2350 DB2170
500 CR RS/RT/RV/RW/RX/RY/R1 95-01 DB2230 DB2170
500 CRE F X 08-09 DB2230 DB2280
500 CRM X 11 DB2870 DB2280
600 XL/XR 85-87 DB2080 N/A
600 XR L 93-08 DB2230 DB2170
600 XR R 88-90 DB2350 DS030
600 XR R 93-00 DB2230 DB2170
600 XR RM 91 DB2350 DB2170
650 XR L 93-23 DB2230 DB2170
650 XR R 00-08 DB2230 DB2170
